TSP 360-124 EX | TRACO POWER

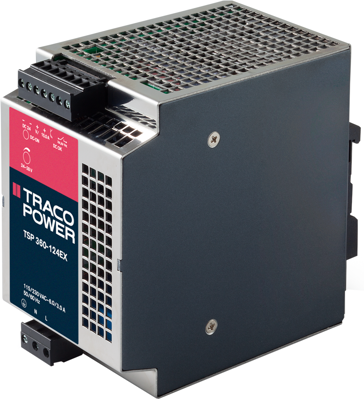

Power supply, 24 to 28 VDC, 15 A, 360 W, TSP 360-124 EX
Power supply, TSP 360-124 EX, Traco
The TSP 360-124 EX power supply is designed for reliable operation in harsh conditions on the factory floor. High immunity to electrical noise and rugged metal housing make this module the best choice for powering sensitive loads in industrial process control systems, machine tools or other demanding industrial applications. It provides a DC OK signal and an external shutdown function.
Features
- Rugged metal housing for harsh industrial environments
- Shock and vibration resistant
- Industrial operating temperature range: -25 °C to +70 °C
- Adjustable output voltage
- Protection against short circuit, overvoltage and overtemperature
- Power OK signal, remote control on/off
Number of outputs | 1 | |
Output voltage DC | 24 to 28 VDC | |
Output current | 15 A | |
Width | 80 mm | |
Input voltage AC | 85-132 VAC, 187-264 VAC | |
Height | 125 mm | |
Power | 360 W | |
Degree of protection (IP) | IP20 | |
Depth | 86 mm | |
efficiency | 87 % |
Country of origin | CN |
Customs tariff number | 85043180 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
