TSP 360-124WR | TRACO POWER

Power supply, 24 to 28 VDC, 15 A, 360 W, TSP 360-124WR

Order No.: 25K5672
EAN: 4099891284114
MPN:
TSP 360-124WR
Series: TSP
TRACO POWER

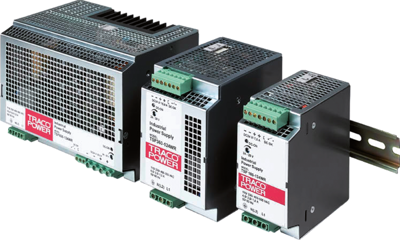

TSP 360-124WR TRACO POWER DIN Rail Power Supplies Image 1
TSP 360-124WR TRACO POWER DIN Rail Power Supplies Image 2
Image may differ
Unit Price (€ / pc.)
407.4798 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
407.48 € *
Price list
Quantity
Price per unit*
1 pcs.
407.4798 €
10 pcs.
366.7223 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power supplies, type TSP..WR.

Ultra-wide input range from 100 to 550 VAC, for single- and 3-phase operation, suitable for wall and rail mounting, rigged metal enclosure, variable output voltage, DC-OK signal,sustained short circuit-proof, overvoltage and thermal overload protection; Input voltage: 85 to 132/187 to 550 VAC (selectable). Output voltage adjustment range: 24 to 28 VDC. Line control: max. 0.5 %. Load control: max. 0.5 %. Residual ripple: 100 mVpp. Interference suppression: EN 55011 class B, EN 55022 class B, EN 61204-3, EN 61000-6-3. Immunity to interference: EN 61204-3, EN 61000-6-2. Short-circuit protection: current limiting at 125 % of Imax. Overvoltage protection: 34 V. Efficiency: 88 %. Operating temperatures: –25 to +70 °C. Connections: pluggable screw terminals.

360 W output power, type TSP..WR.

Dimensions: W 80, H 125, D 125 mm.

Technical attributes (type, output power, output current max): TSP 360-124WR, 360 W, 24 VDC, 15 A

Technical specifications
Number of outputs 1
Output voltage DC 24 to 28 VDC
Output current 15 A
Width 80 mm
Input voltage AC 85-132 VAC, 187-550 VAC
Height 125 mm
Power 360 W
Degree of protection (IP) IP20
Depth 125 mm
efficiency 88 %
Logistics
Country of origin TW
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
