VP 12 10K | TWK-ELEKTRONIK
Rotary position encoder, VP 12, 10K, 0.2 W, 360°
Unit Price (€ / pc.)
53.1216 € *
Available: 33 pcs.
Next delivery: 22 pcs. on 2025-04-16
Leadtime: 8 Weeks **
Total Price:
53.12 € *
Price list
Quantity
Price per unit*
1 pcs.
53.1216 €
5 pcs.
49.9443 €
15 pcs.
48.0284 €
50 pcs.
45.8983 €
150 pcs.
43.9943 €
*incl. VAT plus shipping costs
**Subject to prior sale

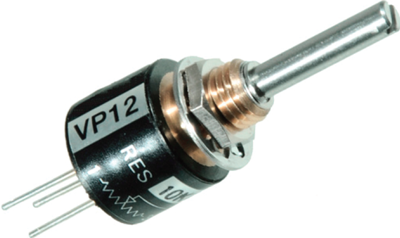

Rotary position encoder, VP 12 10K, TWK-ELEKTRONIK
Virtually infinite resolution; Linearity: 2.0 %. Tolerance: ±20 %. Rating: 0.2 W (up to +55 °C). Wiper current: max. 1.0 mA. Dielectric strength: 500 V/1.0 min. Insulation resistance: greater than 1000 Mohm. Operating temperatures: -55 to +105 °C. Temperature coefficient: ±400. Electrical turning angle: 324° (±5°). Mechanical turning angle: 360° travel without stop. Design: plastic housing, 3.0 mm metal shaft, M6 x 0.75 center mounting stud, solder pins.
Type: 10K
Technical specifications
| Länge | 42 mm | |
| Produkt-Art | Dreh Positionsgeber |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 90318020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
