MS0105 | VA Labs
Digital multimeter MS0105, 10 A(DC), 10 A(AC), 600 VDC, 600 VAC, CAT III 600 V
Order No.: 21K586
EAN: 4260508890404
MPN:
MS0105
Unit Price (€ / pc.)
30.3688 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
30.37 € *
Price list
Quantity
Price per unit*
1 pcs.
30.3688 €
5 pcs.
28.5481 €
*incl. VAT plus shipping costs
**Subject to prior sale

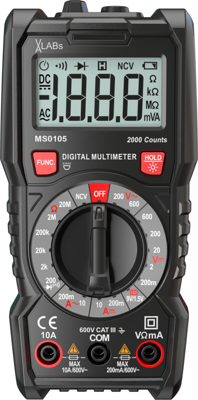

Digital Multimeter, MS0105, VA Labs
The digital multimeter MS0105 with manual measuring range selection and 2,000 counts display range has the most important basic measuring functions, such as AC/DC voltage and current measurement up to 600 V / 10 A and resistance measurement up to 20 MOhm. In addition, the CAT III multimeter is equipped with various special functions, such as non-contact voltage detection (NCV), continuity and diode test function, measurement hold function and battery test function. The integrated, switchable LED working light also enables the user to measure reliably and efficiently, even in poorly lit environments. Scope of delivery: MS0105 digital multimeter, measuring leads, manual, batteries
Technical specifications
| Display Digits | 2000 | |
| Version | digital multimeter | |
| TRMS possible | No | |
| max. measured current value (AC) | 10 A | |
| max. measured current value (DC) | 10 A | |
| max. resistance range | 20 MΩ | |
| max. voltage measuring range (AC) | 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| Surge voltage category | CAT III 600 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303100 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
