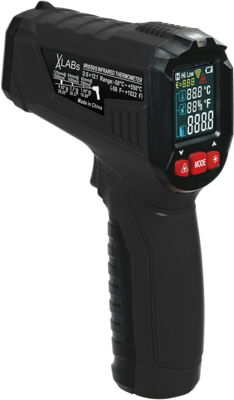

VA Labs infrared thermometer, IR0505
Infrared Thermometer, IR0505, VA Labs
The IR0505 VA LABS IR thermometer is the perfect solution for contactless and efficient measurement of surface temperatures of various objects (fixed value emission adjustable from 0.1 to 1.0) in the measuring range from -50 to +550 °C. The integrated laser pointer enables safe and reliable aiming of the target from a distance. The measurement results are then shown on the integrated multi-color display with black background at the push of a button after a measurement time of 0.5 seconds. In addition, individual minimum and maximum values can be set by the user. If this is exceeded, this is indicated on the display and by the integrated alarm LED above the display. A measurement hold function (HOLD), min/max and average measurement round off the functional range of the IR0505. Scope of delivery: Infrared thermometer IR0505, batteries, manual
Resolution | 0.1 °C | |
Version | infrared thermometer | |
Distance/measuring point ratio | 12:1 | |
Accuracy | ±1.5 % | |
max. operating temperature | 550 °C | |
min. operating temperature | -50 °C | |
Response Time | 500 ms |
Country of origin | CN |
Customs tariff number | 90251900 |
MSL | MSL 1 |
RoHS conform | Yes |
Date of RoHS guidelines | 6/8/11 |
SVHC free | Yes |
