T60404-A4655-X001 | Vacuumschmelze

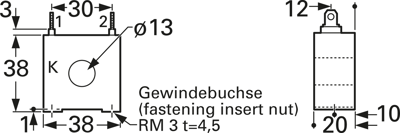

Current converter, 16.7 Hz, 1 kHz, 38 x 38 x 20
Unit Price (€ / pc.)
32.3799 € *
Available: 36 pcs.
Leadtime: On Request **
Total Price:
32.38 € *
Price list
Quantity
Price per unit*
1 pcs.
32.3799 €
5 pcs.
30.4997 €
15 pcs.
29.3692 €
50 pcs.
28.1078 €
150 pcs.
26.9773 €
*incl. VAT plus shipping costs
**Subject to prior sale
Current converter, T60404-A4655-X001, Vacuumschmelze
Used for sensing and monitoring sinusoidal currents, safe galvanic isolation; Frequency range: 16.7 to 1000 Hz, (adaptation by modification of the burden resistance).
Primary current 100 A rms.
Transformer ratio: 1 : 1000. Burden resistance for input/output voltage: 100 ohm/10 V. Test voltage: 1.9 KV.
Type: T60404-A4655-X001, current converter.
Technical specifications
| Version | current converter | |
| Width | 20 mm | |
| Frequency | 16.7 to 1000 Hz | |
| Height | 38 mm | |
| Length | 38 mm | |
| Assembly | chassis mounting | |
| Rated current | 100 A |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85045000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
