VI302DP-RC-S | Varitronix
LCD display, 1 x 3.5 character, TN, VI302DP-RC-S
Unit Price (€ / pc.)
7.3542 € *
Available: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
7.35 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3542 €
10 pcs.
6.4736 €
100 pcs.
5.6763 €
200 pcs.
5.4621 €
800 pcs.
5.1051 €
*incl. VAT plus shipping costs
**Subject to prior sale
LCDs, type VI.
2.54 mm grid. For direct soldering on PCBs; Display mode: reflective. Segments: black. Background: silver. Operating voltage min./typical: 3.0/6.0 V. Inrush current typical/max.: 15/30 nA/mm². Frequency min./max.: 30/200 Hz. Operating temperatures: –10 to +60 °C.
3 1/2-digit LCDs with symbols, type VI 302 DP.

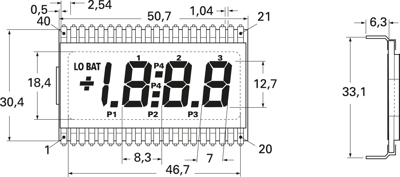

Font height: 12.7 mm. Dimensions: W 50.8 mm, H 30.4 mm.
Type: VI 302 DP, LCD
Technical specifications
| Display | 1 x 3,5 Zeichen | |
| Width | 50.8 mm | |
| Thickness | 2.8 mm | |
| Background color | grau | |
| Height | 30.5 mm | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -10 °C | |
| Technology | TN |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85312095 |
| MSL | MSL 1 |
| Original Packaging | Stange mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
