86117 201 301 | VARTA

Lithium-battery, 3 V, LR6, AA, round cell, solder pin, 86117 201 301

Order No.: 26A4126
EAN: 4099891651633
MPN:
86117 201 301
VARTA
86117 201 301 VARTA Round Cells, 9V Blocks Image 1
86117 201 301 VARTA Round Cells, 9V Blocks Image 2
Image may differ
Print
Key Specification:
Version round cell
Technology lithium
IEC designation LR6
other designation mignon
Rated voltage 3 V
Show 12 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
9.5914 € *
Available: 20 pcs.
Leadtime: 4 Weeks **
Total Price:
9.59 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5914 €
10 pcs.
8.4371 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Lithium batteries, type Varta CR..A/AA.

Round cell type AA

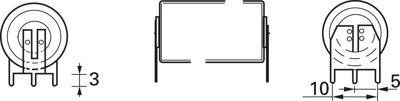

With 3 solder pin terminals, type CR..SLF.
Technical specifications
Connection solder pin
Usage industrial applications
Version round cell
diameter 14.75 mm
Size AA
Height 50.5 mm
IEC designation LR6
max. operating temperature 75 °C
min. operating temperature -55 °C
Nominal capacity 2 Ah
Rated voltage 3 V
other designation mignon
Technology lithium
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85065010
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME)
