AL 130 M 8 OHM | VISATON

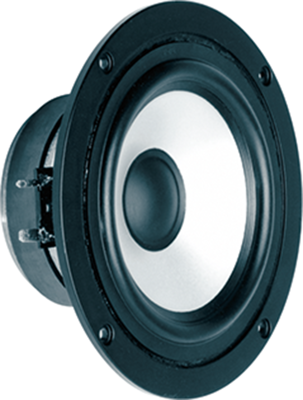

High-end midrange drivers, type Visaton AL 130 M.

With stiff, anodized aluminum cone, solid aluminum die-cast basket and elastic rubber surround, minimum mechanical and electrical losses through vented pole core and damper. Capton voice coil and impedance control ring. Ideal for use as cone midrange driver in 3-way high-end systems to cover the frequency range up to 5000 Hz.

Rated load: 60 W

Peak load: 90 W

Rated impedance: 8.0 ohm

Frequency response: fu to 8000 Hz (fu represents the low frequency limit depending on the shell)

Mean sound pressure level: 90 dB

Resonant frequency: 57 Hz

Weight: 1.0 kg

Type: AL 130 M, high-end midrange Driver

Manufacturer: Visaton
