AL 200 8 OHM | VISATON
High-end woofer, 8 Ω, 88 dB, 9 kHz, black/white, AL 200 8 OHM
Order No.: 43M240
EAN: 4007540012810
MPN:
AL 200 8 OHM
1281
Unit Price (€ / pc.)
201.1338 € *
Available: 0 pcs.
Leadtime: On Request **

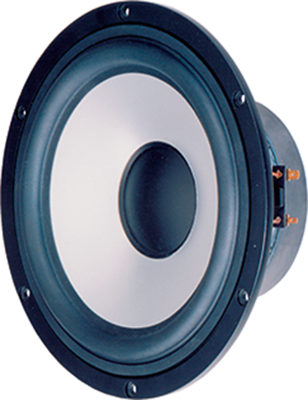

High-end woofers, type Visaton AL 200.
Stiff aluminum cone, solid aluminum die-cast basket and elastic rubber surround. Minimum mechanical and electrical losses due to vented pole plate, vented damper and Capton voice coil carrier. Fast pulse response due to light weight aluminum cone. Ideal for use in 2- and 3-way combinations and as low-midrange driver in 4-way high-end systems.
Rated load: 120 W
Peak load: 180 W
Rated impedance: 8,0 ohm
Frequency response: fu to 9000 Hz (fu represents the low frequency limit depending on the shell)
Mean sound pressure level: 88 dB
Resonant frequency: 32 Hz
Weight: 2,5 kg
Type: AL 200, high-end woofer
Manufacturer: Visaton
Technical specifications
| Ausführung | High-End-Tieftöner | |

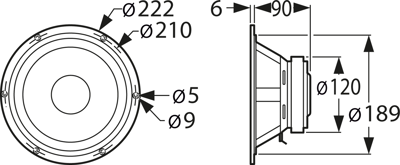

| Einbaudurchmesser | 188 mm | |
| Farbe | schwarz/weiß | |
| Impedanz | 8 Ω | |
| max. Übertragungsbereich | 9 kHz | |
| Resonanzfrequenz | 32 Hz | |
| Schalldruckpegel | 88 db |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85182900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
