FRS 8 JS 8 OHM | VISATON
Broadband speaker, 8 Ω, 83 dB, 80 Hz to 20 kHz, black, FRS 8 JS 8 OHM
Order No.: 38M688
EAN: 4007540020006
MPN:
FRS 8 JS 8 OHM
LAUTSPRECHER FRS 8 JS 8 Ohm
Unit Price (€ / pc.)
11.1265 € *
Available: 0 pcs.
Leadtime: On Request **

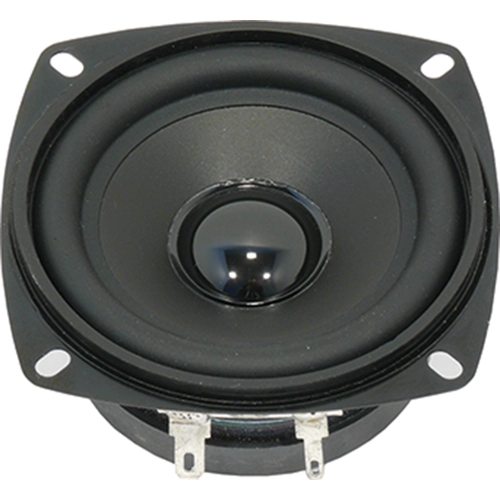

Fullrange speakers, type Visaton FR 8 JS.

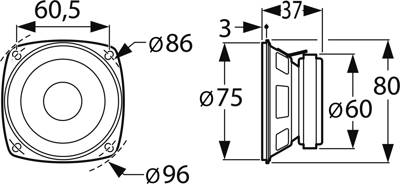

Water-proof polypropylene cone, good low-range characteristics and balanced frequency response; Rated/peak power: 10/15 W. Impedance: 8.0 ohm. Mean sound pressure level: 83 dB. Frequency response: 80 to 20000 Hz. Resonant frequency: 130 Hz. Degree of protection: IP 64. Operating temperatures: –25 to +70 °C. Dimensions: 96 x 37 mm.
Type: 2000, fullrange speaker
Technical specifications
| Version | Breitbandlautsprecher | |
| Installation diameter | 60 mm | |
| Colour | schwarz | |
| Impedance | 8 Ω | |
| Max. transmission range | 20 kHz | |
| min. transmission range | 80 Hz | |
| Resonance frequency | 130 Hz | |
| Sound pressure level | 83 db |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
