G 20 SC 8 OHM | VISATON
High-end fabric dome, 8 Ω, 88 dB, 1.2 to 30 kHz, black, G 20 SC 8 OHM
Order No.: 43M110
EAN: 4099891542856
MPN:
G 20 SC 8 OHM
1185
Unit Price (€ / pc.)
62.8439 € *
Available: 0 pcs.
Leadtime: 1 Week **

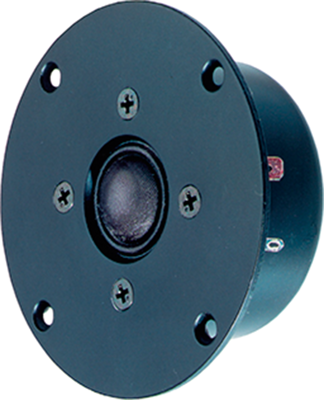

High-end textile domes, type Visaton G 20 SC.
Magnetically shielded, for the tweeter range starting at 3000 Hz. The optimized dome shape and damping felt on the pole core ensures an ultimately balanced frequency response without resonant frequencies and very good omnidirectional sound distribution. The strong magnet drive and the voice coil that is cooled with ferro fluid ensure high efficiency and load capability.
Rated load: 120 W
Peak load: 180 W
Impedance: 8.0 ohm
Frequency response: 1200 to 30000 Hz
Mean sound pressure level: 88 dB
Resonant frequency: 1890 Hz
Weight: 390 g
Type: G 20 SC, high-end textile dome
Manufacturer: Visaton
Technical specifications
| Version | high-end fabric dome | |

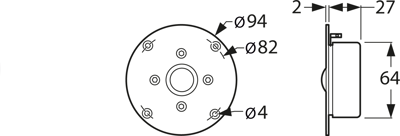

| Installation diameter | 54 mm | |
| Colour | black | |
| Impedance | 8 Ω | |
| Max. transmission range | 30 kHz | |
| min. transmission range | 1.2 kHz | |
| Resonance frequency | 1890 Hz | |
| Sound pressure level | 88 db |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
