G 50 FFL 8 OHM | VISATON
High-end fabric dome, 8 Ω, 90 dB, 450 Hz to 15 kHz, black, G 50 FFL 8 OHM
Order No.: 43M150
EAN: 4007540011769
MPN:
G 50 FFL 8 OHM
1176
Unit Price (€ / pc.)
116.8223 € *
Available: 0 pcs.
Leadtime: On Request **

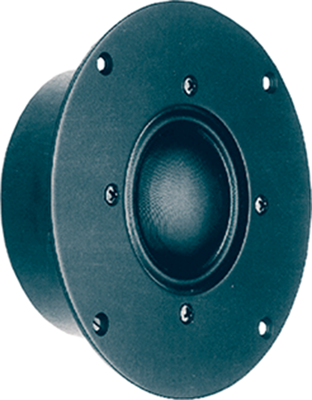

High-end textile domes, type Visaton G 50 FFL.
For mid-range frequencies between 800 and 7000 Hz. The optimized dome shape with damping coating and a textile surround with particularly high damping properties ensure a linear frequency response and no partial oscillation. The strong magnetic drive and the voice coil that is cooled with ferro fluid ensure high efficiency and load capability.
Rated load: 120 W
Peak load: 180 W
Impedance: 8.0 ohm
Frequency response: 450 to 15000 Hz
Mean sound pressure level: 90 dB
Resonant frequency: 455 Hz
Weight: 1.0 kg
Type: G 50 FFL, high-end textile dome
Manufacturer: Visaton
Technical specifications
| Ausführung | High-End-Gewebekalotte | |

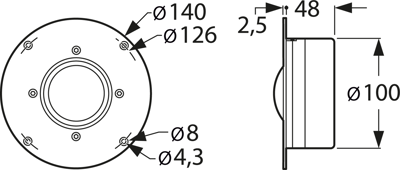

| Einbaudurchmesser | 100 mm | |
| Farbe | schwarz | |
| Impedanz | 8 Ω | |
| max. Übertragungsbereich | 15 kHz | |
| min. Übertragungsbereich | 450 Hz | |
| Resonanzfrequenz | 455 Hz | |
| Schalldruckpegel | 90 db |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85182900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
