K50 FLS 8 OHM | VISATON
Small speaker, 8 Ω, 85 dB, 350 Hz to 20 kHz, black, K50 FLS 8 OHM
Order No.: 38M569
EAN: 4007540029559
MPN:
K50 FLS 8 OHM
LAUTSPRECHER K50 FLS 8 Ohm
Unit Price (€ / pc.)
5.6763 € *
Available: 0 pcs.
Leadtime: On Request **

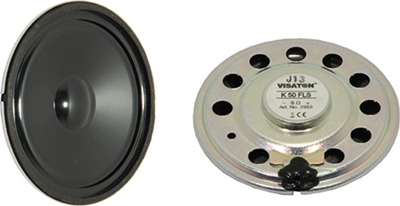

Miniature speakers, type Visaton K 50 FLS.

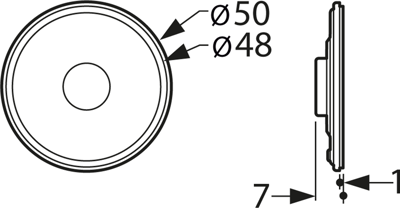

With plastic cone (Mylar) and metal basket, well suited for outdoor applications and critical ambient environments; Rated/peak power: 1.0/2.0 W. Impedance: 8.0 ohm. Mean sound pressure level: 85 dB. Frequency response: 350 to 20000 Hz. Resonant frequency: 570 Hz. Degree of protection: IP 65. Operating temperatures: –40 to +70 °C. Dimensions: 50 x 7.0 mm. Weight: 14 g.
Type: 2955, Miniature speaker
Technical specifications
| Ausführung | Kleinlautsprecher | |
| Einbaudurchmesser | 46 mm | |
| Farbe | schwarz | |
| Impedanz | 8 Ω | |
| max. Übertragungsbereich | 20 kHz | |
| min. Übertragungsbereich | 350 Hz | |
| Resonanzfrequenz | 570 Hz | |
| Schalldruckpegel | 85 db |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85182900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
