SL 87 FE 8 OHM | VISATON
Broadband speaker, 8 Ω, 87 dB, 75 Hz to 18 kHz, black, SL 87 FE 8 OHM
Order No.: 38M698
EAN: 4007540020914
MPN:
SL 87 FE 8 OHM
LAUTSPRECHER SL 87 FE 8 Ohm
Unit Price (€ / pc.)
17.8857 € *
Available: 0 pcs.
Leadtime: On Request **

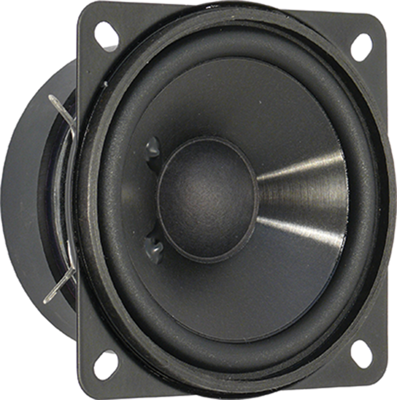

Fullrange speakers, type Visaton SL 87 FE.

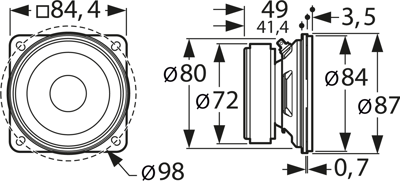

With plastic cone, rubber surround, large ferrite magnet, very high efficiency and particularly well balanced frequency response; Rated/peak power: 10/15 W. Impedance: 8.0 ohm. Mean sound pressure level: 87 dB. Frequency response: 75 to 18000 Hz. Resonant frequency: 120 Hz. Degree of protection: IP 64. Operating temperatures: –40 to +80 °C. Dimensions: 98 x 49 mm.
Type: 2091, fullrange speaker
Technical specifications
| Ausführung | Breitbandlautsprecher | |
| Einbaudurchmesser | 72 mm | |
| Farbe | schwarz | |
| Impedanz | 8 Ω | |
| max. Übertragungsbereich | 18 kHz | |
| min. Übertragungsbereich | 75 Hz | |
| Resonanzfrequenz | 120 Hz | |
| Schalldruckpegel | 87 db |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85182900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
