HBZ151MBBCF0KR | Vishay
Ceramic capacitor, 150 pF, 2 kV (DC), ±20 %, radial, pitch 7.5 mm, Y5T, HBZ151MBBCF0KR
Unit Price (€ / pc.)
1.2733 € *
Available: 1,327 pcs.
Leadtime: 9 Weeks **
Total Price:
12.73 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2733 €
50 pcs.
1.1186 €
250 pcs.
0.9758 €
2000 pcs.
0.7616 €
4000 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale

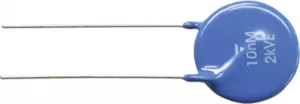

HV ceramic disk capacitors, type Vishay/Draloric HB../HDE/HFE/HGZ.
With epoxy resin molding (insulating and flame retardant)
Rated voltage 2.0 kVDC, type HBZ/HBE.
Technical specifications
| Design | radial | |
| Dielectric material | Y5T | |
| diameter | 7 mm | |
| Capacity | 150 pF | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 2 kV | |
| Grid | 7.5 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85322300 |
| Original Packaging | Bulk with 2,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
