HGZ222MBPEJ0KR | Vishay
Ceramic capacitor, 2.2 nF, 8 kV (DC), ±20 %, radial, Y5T, HGZ222MBPEJ0KR
Unit Price (€ / pc.)
3.2011 € *
Available: 1,124 pcs.
Leadtime: On Request **
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
2.8084 €
100 pcs.
2.4633 €
250 pcs.
2.3681 €
1000 pcs.
2.2253 €
*incl. VAT plus shipping costs
**Subject to prior sale

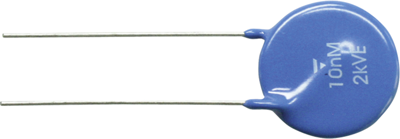

HV ceramic disk capacitors, type Vishay/Draloric HB../HDE/HFE/HGZ.
With epoxy resin molding (insulating and flame retardant)
Rated voltage 8.0 kVDC, type HGZ.
Technical specifications
| Design | radial | |
| Dielectric material | Y5T | |

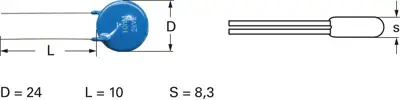

| diameter | 24 mm | |
| Capacity | 2.2 nF | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 8 kV | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85322300 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
