WKP221MCPEF0KR | Vishay

Ceramic suppression capacitor, 220 pF, 500 V (AC), ±20 %, radial, pitch 12.5 mm, Y5T, WKP221MCPEF0KR

Order No.: 62D330
EAN: 4099879784988
MPN:
WKP221MCPEF0KR
WKP 221 M CP EFO K
Series: WKP
Vishay
WKP221MCPEF0KR Vishay Ceramic Capacitors
Image may differ
Print
Key Specification:
Capacity 220 pF
Rated voltage (AC) 500 V
Tolerance ±20 %
Dielectric material Y5T
Show 7 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4998 € *
Available: 3,450 pcs.
Leadtime: 9 Weeks **
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.3570 €
100 pcs.
0.3094 €
500 pcs.
0.2737 €
1000 pcs.
0.2380 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Safety ceramic disk capacitors, type Vishay/Draloric WKP.

With epoxy resin molding (UL 94 V-0)
Technical specifications

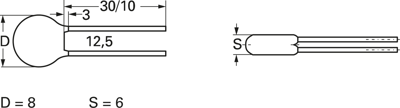

Design radial
Dielectric material Y5T
diameter 8 mm
Capacity 220 pF
max. operating temperature 125 °C
min. operating temperature -40 °C
Rated voltage (AC) 500 V
Grid 12.5 mm
Tolerance ±20 %
Show similar products 0
Logistics
Country of origin CZ
Customs tariff number 85322300
Original Packaging Bulk with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
