WKP332MCPEJ0KR | Vishay

Ceramic suppression capacitor, 3.3 nF, 500 V (AC), ±20 %, radial, pitch 12.5 mm, Y5U, WKP332MCPEJ0KR

Order No.: 62D344
EAN: 4099879785022
MPN:
WKP332MCPEJ0KR
WKP 332 M CP EFO K
Series: WKP
Vishay
WKP332MCPEJ0KR Vishay Ceramic Capacitors
Image may differ
Print
Key Specification:
Capacity 3.3 nF
Rated voltage (AC) 500 V
Tolerance ±20 %
Dielectric material Y5U
Show 7 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
0.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.4403 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Safety ceramic disk capacitors, type Vishay/Draloric WKP.

With epoxy resin molding (UL 94 V-0)

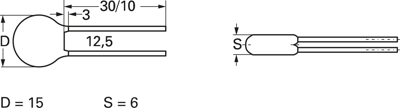

Technical specifications
Design radial
Dielectric material Y5U
diameter 15 mm
Capacity 3.3 nF
max. operating temperature 125 °C
min. operating temperature -40 °C
Rated voltage (AC) 500 V
Grid 12.5 mm
Tolerance ±20 %
Show similar products 0
Logistics
Country of origin CZ
Customs tariff number 85322300
Original Packaging Bulk with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
