GRC00DD3311HTNL | Vishay
Electrolytic capacitor, 330 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, GRC00DD3311HTNL
Unit Price (€ / pc.)
0.1618 € *
Available: 0 pcs.
Leadtime: On Request **
Electrolytic capacitor in aluminum can, type Vishay GRC.
For vertical mounting
Rated voltage 50 VDC.
Technical specifications
| Version | Polar | |
| Design | radial | |

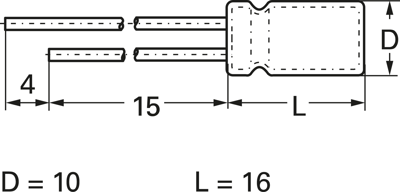

| diameter | 10 mm | |
| Capacity | 330 µF | |
| Length | 16 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 50 V | |
| Grid | 5 mm | |
| Ripple current | 410 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
