GRC00FE1021VTNL | Vishay

Electrolytic capacitor, 1000 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, GRC00FE1021VTNL

Order No.: 12D4854
EAN: 4099879868893
MPN:
GRC00FE1021VTNL
GRC 1000UF 35V 12.5X20MM
Series: GRC
Vishay
GRC00FE1021VTNL Vishay Electrolytic Capacitors Image 1
GRC00FE1021VTNL Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Available: 457 pcs.
Leadtime: 20 Weeks **
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.4879 €
50 pcs.
0.3451 €
250 pcs.
0.2904 €
1000 pcs.
0.2487 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor in aluminum can, type Vishay GRC.

For vertical mounting

Rated voltage 35 VDC.

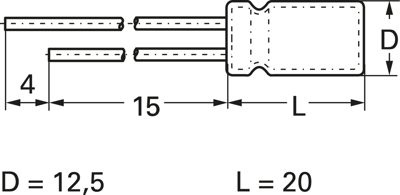

Technical specifications
Version polar
Design radial
diameter 12.5 mm
Capacity 1000 µF
Length 20 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 35 V
Grid 5 mm
Ripple current 810 mA
Tolerance ±20 %
Logistics
Country of origin CN
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
