GRC00KL4721V00L | Vishay

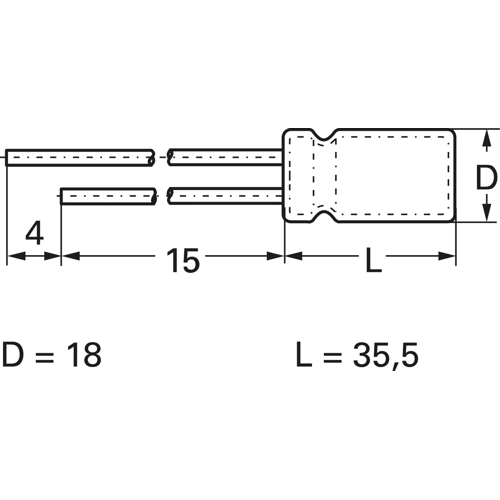

Electrolytic capacitor, 4700 µF, 35 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 18 mm, GRC00KL4721V00L
Unit Price (€ / pc.)
2.2610 € *
Available: 434 pcs.
Leadtime: On Request **
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
1.4161 €
50 pcs.
1.2495 €
250 pcs.
1.0829 €
1000 pcs.
0.9401 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor in aluminum can, type Vishay GRC.
For vertical mounting
Rated voltage 35 VDC.
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 18 mm | |
| Capacity | 4700 µF | |
| Length | 35.5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 35 V | |
| Grid | 7.5 mm | |
| Ripple current | 1.9 A | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
