GRC00PB2211VTNL | Vishay

Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, radial, pitch 3.5 mm, Ø 8 mm, GRC00PB2211VTNL

Order No.: 12D4849
EAN: 4099879868862
MPN:
GRC00PB2211VTNL
GRC 220UF 35V 8X11.5MM
Series: GRC
GRC00PB2211VTNL Vishay Electrolytic Capacitors Image 1
GRC00PB2211VTNL Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.2356 € *
Available: 0 pcs.
Next delivery: 9,975 pcs. on 2025-04-21
Leadtime: On Request **
Total Price:
0.24 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2356 €
10 pcs.
0.1476 €
50 pcs.
0.1047 €
250 pcs.
0.0881 €
1000 pcs.
0.0750 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor in aluminum can, type Vishay GRC.

For vertical mounting

Rated voltage 35 VDC.

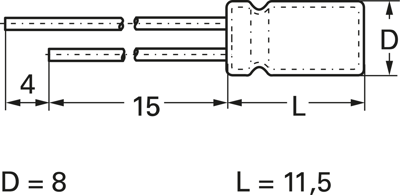

Technical specifications
Version Polar
Design radial
diameter 8 mm
Capacity 220 µF
Length 11.5 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Rated voltage (DC) 35 V
Grid 3.5 mm
Ripple current 270 mA
Tolerance ±20 %
Logistics
Country of origin CN
Customs tariff number 85322200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
