MAL202138109E3 | Vishay
Electrolytic capacitor, 10 µF, 63 V (DC), -10/+30 %, axial, Ø 6 mm, MAL202138109E3
Unit Price (€ / pc.)
1.4637 € *
Available: 1,440 pcs.
Leadtime: On Request **
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4637 €
10 pcs.
1.0472 €
100 pcs.
0.8925 €
500 pcs.
0.7854 €
1000 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale

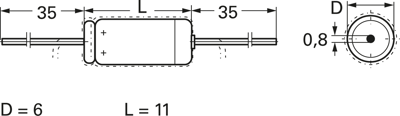

Electrolytic capacitor, insulated aluminum can, type Vishay/BComponents MAL 20.
Axial
Rated voltage 63 VDC.
Technical specifications
| Version | polar | |
| Design | axial | |
| diameter | 6 mm | |
| ESR (Equivalent Series Resistance) | 13 Ω | |
| Capacity | 10 µF | |
| Length | 11 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 63 V | |
| Ripple current | 50 mA | |
| Tolerance | -10/+30 % |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85322200 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
