MAL203029108E3 | Vishay
Electrolytic capacitor, 1 µF, 100 V (DC), -10/+30 %, axial, Ø 5 mm, MAL203029108E3
Unit Price (€ / pc.)
1.4875 € *
Available: 2,090 pcs.
Leadtime: 30 Weeks **
Total Price:
14.88 € *
Price list
Quantity
Price per unit*
10 pcs.
1.4875 €
50 pcs.
1.3090 €
250 pcs.
1.1305 €
1000 pcs.
0.9877 €
2500 pcs.
0.9044 €
*incl. VAT plus shipping costs
**Subject to prior sale

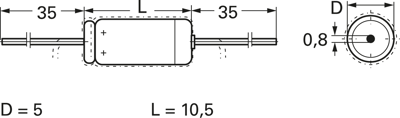

Electrolytic capacitor, insulated aluminum can, type Vishay/BComponents MAL 20.
Axial
Rated voltage 100 VDC.
Technical specifications
| Version | polar | |
| Design | axial | |
| diameter | 5 mm | |
| ESR (Equivalent Series Resistance) | 128 mΩ | |
| Capacity | 1 µF | |
| Length | 10.5 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 100 V | |
| Ripple current | 20 mA | |
| Tolerance | -10/+30 % |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85322200 |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
