MAL213650681E3 | Vishay
Electrolytic capacitor, 680 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, MAL213650681E3
Order No.: 12D5349
EAN: 4099879870117
MPN:
MAL213650681E3
680uF 35V 20% 105°C P5 Alu
Series: 136 RVI
Unit Price (€ / pc.)
2.0944 € *
Available: 258 pcs.
Leadtime: 8 Weeks **
Total Price:
6.28 € *
Price list
Quantity
Price per unit*
3 pcs.
2.0944 €
15 pcs.
1.8445 €
75 pcs.
1.6303 €
400 pcs.
1.4637 €
800 pcs.
1.3804 €
*incl. VAT plus shipping costs
**Subject to prior sale

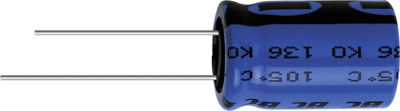

Electrolytic capacitor in aluminum can, type Vishay/BCcomponents RVI 136.
Very low ESR and excellent AC load capability
Rated voltage 35 VDC.
Technical specifications
| Version | polar | |
| Design | radial | |

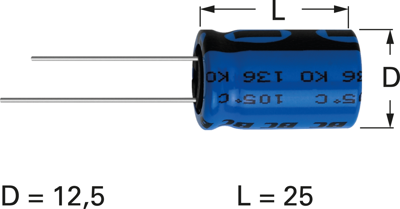

| diameter | 12.5 mm | |
| ESR (Equivalent Series Resistance) | 34 mΩ | |
| Capacity | 680 µF | |
| Length | 25 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 35 V | |
| Grid | 5 mm | |
| Ripple current | 850 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85322200 |
| Original Packaging | Bulk with 250 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
