MAL213651471E3 | Vishay
Electrolytic capacitor, 470 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, MAL213651471E3
Order No.: 12D5363
EAN: 4099879870216
MPN:
MAL213651471E3
470uF 50V 20% 105°C P5 Alu Alu
Series: 136 RVI
Unit Price (€ / pc.)
2.2372 € *
Available: 298 pcs.
Leadtime: 8 Weeks **
Total Price:
2.24 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2372 €
10 pcs.
1.8683 €
100 pcs.
1.5946 €
250 pcs.
1.4399 €
1000 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale

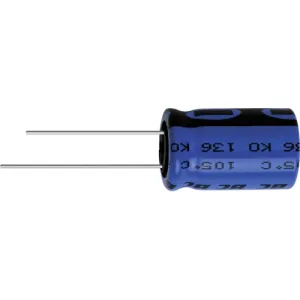

Electrolytic capacitor in aluminum can, type Vishay/BCcomponents RVI 136.
Very low ESR and excellent DC load capability
Rated voltage 50 VDC.
Technical specifications
| Version | polar | |
| Design | radial | |

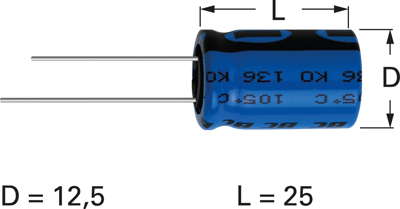

| diameter | 12.5 mm | |
| ESR (Equivalent Series Resistance) | 44 mΩ | |
| Capacity | 470 µF | |
| Length | 25 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 50 V | |
| Grid | 5 mm | |
| Ripple current | 750 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85322200 |
| Original Packaging | Bulk with 250 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
