MAL213655152E3 | Vishay
Electrolytic capacitor, 1500 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, MAL213655152E3
Order No.: 12D5322
EAN: 4099879869937
MPN:
MAL213655152E3
1500uF 16V 20% 105°C P5 Alu
Series: 136 RVI
Unit Price (€ / pc.)
1.3447 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

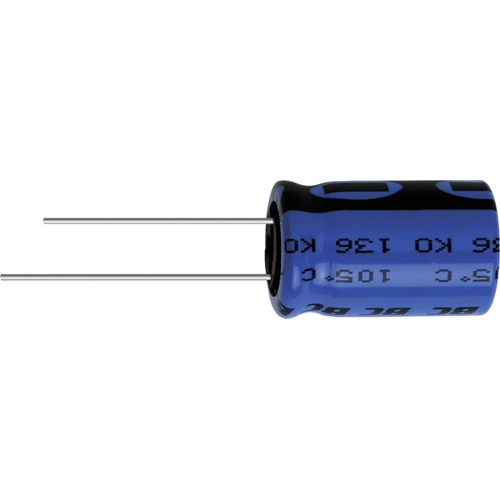

Electrolytic capacitor in aluminum can, type Vishay/BCcomponents RVI 136.
Very low ESR and excellent AC load capability
Rated voltage 16 VDC.
Technical specifications
| Version | Polar | |
| Design | radial | |

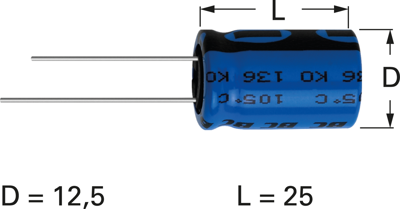

| diameter | 12.5 mm | |
| ESR (Equivalent Series Resistance) | 34 mΩ | |
| Capacity | 1500 µF | |
| Length | 25 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 16 V | |
| Grid | 5 mm | |
| Ripple current | 1.071 A | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85322200 |
| Original Packaging | Bulk mit 250 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
