MAL213656821E3 | Vishay

Name: Electrolytic capacitor, 820 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, MAL213656821E3
Brand: Vishay
SKU: 12D5334
Price: 0.98 EUR
Availability: OutOfStock

Electrolytic capacitor, 820 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, MAL213656821E3

Order No.: 12D5334

EAN: 4099879870001

MPN:

MAL213656821E3

820uF 25V 20% 105°C P5 Alu

Series: 136 RVI

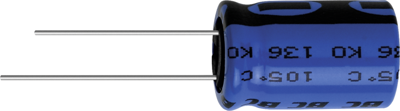

MAL213656821E3 Vishay Electrolytic Capacitors Image 1

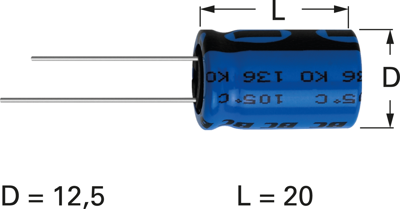

MAL213656821E3 Vishay Electrolytic Capacitors Image 2

Image may differ

Key Specification:

Version polar

Capacity 820 µF

Rated voltage (DC) 25 V

Tolerance ±20 %

Show 7 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.9758 € *

Available: 0 pcs.

Leadtime: 8 Weeks **

Add to Cart

Total Price:

0.98 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Electrolytic capacitor in aluminum can, type Vishay/BCcomponents RVI 136.

Very low ESR and excellent AC load capability

Rated voltage 25 VDC.

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Product Change Notification - EN Product Change Notification

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	AT
Customs tariff number	85322200
Original Packaging	Bulk with 500 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 7 variations

*incl. VAT plus shipping costs

MAL213656102E3 Vishay Electrolytic Capacitors

Electrolytic capacitor, 1000 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, MAL213656102E3

Order No.:

12D5335

Manufacturer:

Vishay

Manufacturer SKU:

MAL213656102E3

Available: 307 pcs. Leadtime: 8 Weeks **

Total Price: 6.10 € *

3 pcs.

2.0349 €

15 pcs.

1.7850 €

75 pcs.

1.5827 €

400 pcs.

1.4161 €

800 pcs.

1.3447 €

12.5 mm

25 mm

5 mm

1000 µF

1.071 A

radial

polar

±20 %

-55 °C

25 V

105 °C

MAL213656221E3 Vishay Electrolytic Capacitors

Electrolytic capacitor, 220 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, MAL213656221E3

Order No.:

12D5330

Manufacturer:

Vishay

Manufacturer SKU:

MAL213656221E3

Available: 22 pcs. Leadtime: 8 Weeks **

Total Price: 11.19 € *

10 pcs.

1.1186 €

50 pcs.

0.9877 €

250 pcs.

0.8568 €

1000 pcs.

0.7497 €

2000 pcs.

0.6902 €

10 mm

12 mm

5 mm

220 µF

397 mA

radial

polar

±20 %

-55 °C

25 V

105 °C

MAL213656471E3 Vishay Electrolytic Capacitors

Electrolytic capacitor, 470 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, MAL213656471E3

Order No.:

12D5332

Manufacturer:

Vishay

Manufacturer SKU:

MAL213656471E3

Available: 1,987 pcs. Leadtime: 8 Weeks **

Total Price: 13.80 € *

10 pcs.

1.3804 €

50 pcs.

1.2138 €

500 pcs.

0.9758 €

1000 pcs.

0.9044 €

2000 pcs.

0.8330 €

10 mm

20 mm

5 mm

470 µF

630 mA

radial

polar

±20 %

-55 °C

25 V

105 °C

MAL213656332E3 Vishay Electrolytic Capacitors

Electrolytic capacitor, 3300 µF, 25 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, MAL213656332E3

Order No.:

12D5340

Manufacturer:

Vishay

Manufacturer SKU:

MAL213656332E3

Available: 717 pcs. Leadtime: 8 Weeks **

Total Price: 3.46 € *

1 pcs.

3.4629 €

10 pcs.

3.0464 €

100 pcs.

2.6656 €

200 pcs.

2.5704 €

800 pcs.

2.4038 €

16 mm

35 mm

7.5 mm

3300 µF

1.794 A

radial

polar

±20 %

-55 °C

25 V

105 °C

MAL213656181E3 Vishay Electrolytic Capacitors

Electrolytic capacitor, 180 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, MAL213656181E3

Order No.:

12D5329

Manufacturer:

Vishay

Manufacturer SKU:

MAL213656181E3

Available: 0 pcs. Leadtime: 8 Weeks **

Total Price: 0.64 € *

2000 pcs.

0.6426 €

10 mm

12 mm

5 mm

180 µF

397 mA

radial

polar

±20 %

-55 °C

25 V

105 °C

MAL213656821E3 Vishay Electrolytic Capacitors

Electrolytic capacitor, 820 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, MAL213656821E3

Order No.:

12D5334

Manufacturer:

Vishay

Manufacturer SKU:

MAL213656821E3

Available: 0 pcs. Leadtime: 8 Weeks **

Total Price: 0.98 € *

1500 pcs.

0.9758 €

12.5 mm

20 mm

5 mm

820 µF

819 mA

radial

polar

±20 %

-55 °C

25 V

105 °C

MAL213656472E3 Vishay Electrolytic Capacitors

Electrolytic capacitor, 4700 µF, 25 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 18 mm, MAL213656472E3

Order No.:

12D5341

Manufacturer:

Vishay

Manufacturer SKU:

MAL213656472E3

Available: 0 pcs. Leadtime: 8 Weeks **

Total Price: 3.15 € *

500 pcs.

3.1535 €

18 mm

35 mm

7.5 mm

4700 µF

2.07 A

radial

polar

±20 %

-55 °C

25 V

105 °C

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

We deliver our articles to other countries:

More information

	Version	polar
	Design	radial
	diameter	12.5 mm
	ESR (Equivalent Series Resistance)	46 mΩ
	Capacity	820 µF
	Length	20 mm
	max. operating temperature	105 °C
	min. operating temperature	-55 °C
	Rated voltage (DC)	25 V
	Grid	5 mm
	Ripple current	819 mA
	Tolerance	±20 %
