MALREKA00AA210J00K | Vishay
Electrolytic capacitor, 10 µF, 63 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm, MALREKA00AA210J00K
Discontinued
Unit Price (€ / pc.)
0.1583 € *
Available: 791 pcs.
Leadtime: On Request **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1583 €
10 pcs.
0.1380 €
50 pcs.
0.0988 €
250 pcs.
0.0785 €
1250 pcs.
0.0655 €
*incl. VAT plus shipping costs
**Subject to prior sale

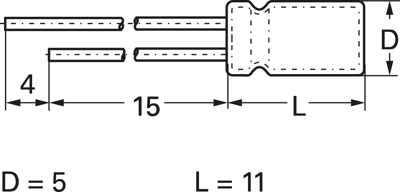

Electrolytic capacitor, insulated aluminum can, type Vishay/Roederstein EKA.
For vertical mounting, to IEC 60384-4
Rated voltage 63 VDC.
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 5 mm | |
| ESR (Equivalent Series Resistance) | 13.3 Ω | |
| Capacity | 10 µF | |
| Length | 11 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 63 V | |
| Grid | 2 mm | |
| Ripple current | 72 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
