MALREKA00BA247H00K | Vishay
Electrolytic capacitor, 47 µF, 50 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm, MALREKA00BA247H00K
Discontinued
Unit Price (€ / pc.)
0.1083 € *
Available: 19,989 pcs.
Leadtime: On Request **
Total Price:
5.41 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1083 €
250 pcs.
0.0869 €
1250 pcs.
0.0714 €
4000 pcs.
0.0607 €
10000 pcs.
0.0559 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Vishay/Roederstein EKA.
For vertical mounting, to IEC 60384-4
Rated voltage 50 VDC.

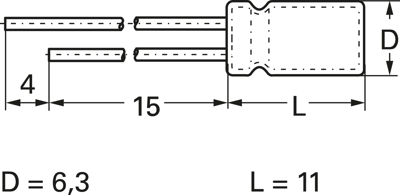

Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 6.3 mm | |
| Capacity | 47 µF | |
| Length | 11 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 50 V | |
| Grid | 2.5 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
