MALREKA00FE247N00K | Vishay

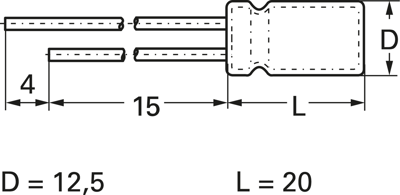

Electrolytic capacitor, 47 µF, 250 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, MALREKA00FE247N00K
Discontinued
Unit Price (€ / pc.)
0.9401 € *
Available: 1,221 pcs.
Leadtime: On Request **
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9401 €
50 pcs.
0.8330 €
250 pcs.
0.7140 €
1000 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Vishay/Roederstein EKA.
For vertical mounting, to IEC 60384-4
Rated voltage 250 VDC.
Technical specifications
| Version | polar | |
| Design | radial | |
| diameter | 12.5 mm | |
| ESR (Equivalent Series Resistance) | 4.23 Ω | |
| Capacity | 47 µF | |
| Length | 20 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 250 V | |
| Grid | 5 mm | |
| Ripple current | 319 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
