ZRC00AA2201HTNL | Vishay

Name: Electrolytic capacitor, 22 µF, 50 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm, ZRC00AA2201HTNL
Brand: Vishay
SKU: 12D5028
Price: 0.06 EUR
Availability: OutOfStock

Electrolytic capacitor, 22 µF, 50 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm, ZRC00AA2201HTNL

Order No.: 12D5028

EAN: 4099879869388

MPN:

ZRC00AA2201HTNL

ZRC 22UF 50V 5X11MM

Series: ZRC

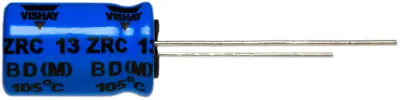

ZRC00AA2201HTNL Vishay Electrolytic Capacitors Image 1

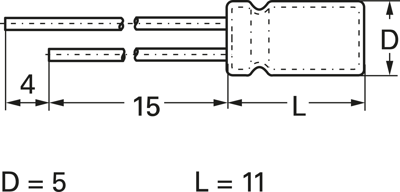

ZRC00AA2201HTNL Vishay Electrolytic Capacitors Image 2

Image may differ

Key Specification:

Version polar

Capacity 22 µF

Rated voltage (DC) 50 V

Tolerance ±20 %

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0559 € *

Available: 0 pcs.

Leadtime: 20 Weeks **

Add to Cart

Total Price:

0.06 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Electrolytic capacitor in aluminum can, type Vishay ZRC.

For vertical mounting, with low ESR

Rated voltage 50 VDC.

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85322200

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 4 variations

*incl. VAT plus shipping costs

ZRC00JG1021H00L Vishay Electrolytic Capacitors

Electrolytic capacitor, 1000 µF, 50 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, ZRC00JG1021H00L

Order No.:

12D5036

Manufacturer:

Vishay

Manufacturer SKU:

ZRC00JG1021H00L

Available: 959 pcs. Leadtime: On Request **

Total Price: 1.33 € *

1 pcs.

1.3328 €

10 pcs.

1.0829 €

100 pcs.

0.9044 €

250 pcs.

0.7854 €

1000 pcs.

0.6902 €

16 mm

25 mm

7.5 mm

1000 µF

2.555 A

radial

polar

±20 %

-55 °C

50 V

105 °C

ZRC00AA2201HTNL Vishay Electrolytic Capacitors

Electrolytic capacitor, 22 µF, 50 V (DC), ±20 %, radial, pitch 2 mm, Ø 5 mm, ZRC00AA2201HTNL

Order No.:

12D5028

Manufacturer:

Vishay

Manufacturer SKU:

ZRC00AA2201HTNL

Available: 0 pcs. Leadtime: 20 Weeks **

Total Price: 0.06 € *

20000 pcs.

0.0559 €

5 mm

11 mm

2 mm

22 µF

180 mA

radial

polar

±20 %

-55 °C

50 V

105 °C

ZRC00DD2211HTNL Vishay Electrolytic Capacitors

Electrolytic capacitor, 220 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, ZRC00DD2211HTNL

Order No.:

12D5032

Manufacturer:

Vishay

Manufacturer SKU:

ZRC00DD2211HTNL

Available: 0 pcs. Leadtime: On Request **

Total Price: 0.22 € *

5000 pcs.

0.2225 €

10 mm

16 mm

5 mm

220 µF

1.05 A

radial

polar

±20 %

-55 °C

50 V

105 °C

ZRC00KL2221H00L Vishay Electrolytic Capacitors

Electrolytic capacitor, 2200 µF, 50 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 18 mm, ZRC00KL2221H00L

Order No.:

12D5038

Manufacturer:

Vishay

Manufacturer SKU:

ZRC00KL2221H00L

Available: 0 pcs. Leadtime: On Request **

Total Price: 1.30 € *

1200 pcs.

1.2971 €

18 mm

35.5 mm

7.5 mm

2200 µF

3.68 A

radial

polar

±20 %

-55 °C

50 V

105 °C

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

We deliver our articles to other countries:

More information

	Version	polar
	Design	radial
	diameter	5 mm
	Capacity	22 µF
	Length	11 mm
	max. operating temperature	105 °C
	min. operating temperature	-55 °C
	Rated voltage (DC)	50 V
	Grid	2 mm
	Ripple current	180 mA
	Tolerance	±20 %
