TLLG5400 | Vishay

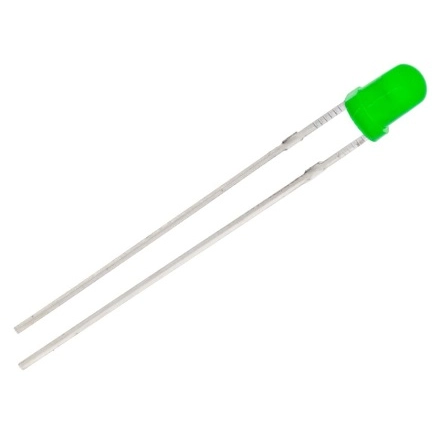

LED, THT, Ø 5 mm, green, 565 nm, 0.63 to 1.2 mcd, 50°, TLLG5400
As an alternative, we recommend the following item:
LED, THT, T-1 3/4, Ø 5 mm, green, 569 nm, 1 mcd to 3.5 cd, 50°, TLLG5420
Order No.: 68S9335
Manufacturer: Vishay
per pc. 0.3011 € *
*incl. VAT plus shipping costs
Low current LED, TLLG5400, VISHAY
The TLLG5400 is a low current LED in Ø 5 mm tinted diffused package.
Features
- Low power consumption
- High brightness
- CMOS / MOS compatible
- Luminous intensity categorized
- Green color categorized
Applications
- Low power DC circuits
Technical specifications
| Radiation angle | 50 ° | |
| Number of LEDs | 1 | |
| Width | 5.4 mm | |
| On-State Voltage | 2.4 V | |
| Forward Current | 7 mA | |
| diameter | 5 mm | |
| Colour of the LED | green | |
| Length | 5.8 mm | |
| Light intensity min. | 0.00063 cd | |
| Light intensity typ. | 0.0012 cd | |
| Lens | green | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Wavelength | 565 nm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
