IRF510PBF | Vishay

Name: Vishay N channel power MOSFET, 100 V, 5.6 A, TO-220, IRF510PBF
Brand: Vishay
SKU: 24S3240
Price: 0.50 EUR
Availability: OutOfStock

Vishay N channel power MOSFET, 100 V, 5.6 A, TO-220, IRF510PBF

Order No.: 24S3240

EAN: 4099879033185

MPN:

IRF510PBF

Series: IRF

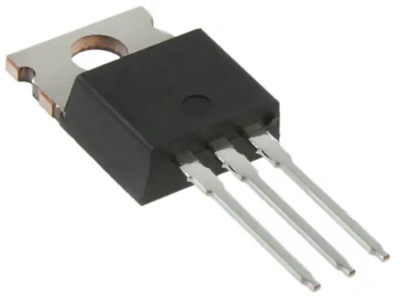

Image may differ

Key Specification:

Version N channel

max. Voltage 100 V

Max. current 5.6 A

drain-source on resistance RDS (on) max @VGS=10V 540 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4998 € *

Available: 0 pcs.

Available in 5 Days: 3,075 pcs.

Leadtime: 15 Weeks **

Add to Cart

Total Price:

0.50 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET NFET s, series IRF../UF.

Technical attributes (type, polarity, voltage (VDS), resistance (RDS), current (ID), power, package, manufacturer): IRF510, N, 100 V, 540 mohm, 5.6 A, 43 W, TO220

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	540 mΩ
	Gate Charge Qg @10V (nC)	8.3x10<sup>-9</sup> C
	Enclosure	TO-220
	max. Voltage	100 V
	Max. current	5.6 A
	max. operating temperature	175 °C
	min. operating temperature	-55 °C
	Assembly	THT
	Power loss	43 W
