IL250 | Vishay

Vishay optocoupler, DIP-6, IL250

Order No.: 66S8266
EAN: 4099879000866
MPN:
IL250
Series: IL
Vishay

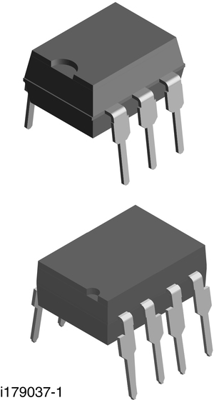

IL250 Vishay Optocoupler
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
0.42 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.4165 €

Optocoupler, IL250, VISHAY

The IL250 is a bidirectional input optically coupled isolator consisting of two gallium arsenide infrared LEDs coupled to a silicon NPN phototransistor per channel. This product has a minimum CTR of 50 % and the IL252 has a minimum CTR of 100 %.

Features

  • Built-in reverse polarity input protection
  • Improved CTR symmetry
  • Industry standard DIP package

Applications

  • Ideal for AC signal detection and monitoring
Technical specifications
Number of channels 1
Enclosure DIP-6
Isolation voltage 5.3 kV
max. operating temperature 100 °C
min. operating temperature -55 °C
Assembly THT
Logistics
Country of origin MY
Customs tariff number 85414900
Original Packaging Bar with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
