IL300-EF | Vishay

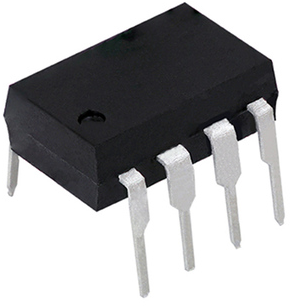

Vishay optocoupler, DIP-8, IL300-EF
Unit Price (€ / pc.)
5.7477 € *
Available: 12 pcs.
Leadtime: On Request **
Total Price:
5.75 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7477 €
10 pcs.
5.1051 €
50 pcs.
4.6172 €
150 pcs.
4.1769 €
500 pcs.
3.8318 €
*incl. VAT plus shipping costs
**Subject to prior sale
Optocoupler, IL300-EF, VISHAY
The IL300-EF consists of an AlGaAs infrared emitter irradiating an output PIN photodiode and a feedback photodiode. The feedback photodiode captures a percentage of the emitter’s flux and generates a control signal (IP1) that can be used to keep the emitter output constant by adjusting the emitter forward current. This compensates for the emitter’s non-linear, time, and temperature characteristics.
The output PIN photodiode pro uces an output signal (IP2) that is linearly related to the servo optical flux created by the emitter. The time and temperature stability of the input-output coupler gain (K3) is insured by using matched PIN photodiodes that accurately track the output flux of the emitter.
Features
- Couples AC and DC signals
- Low input-output capacitance
Applications
- Power supply feedback voltage / current
- Medical sensor isolation
- Audio signal interfacing
- Isolated process control transducers
- Digital telephone isolation
Technical specifications
| Rise time | 1.75 s | |
| Number of channels | 1 | |
| Output current | 70 A | |
| Enclosure | DIP-8 | |
| Isolation voltage | 5.3 kV | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Fall time | 1.75 s |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85414900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
