SFH6156-2T | Vishay

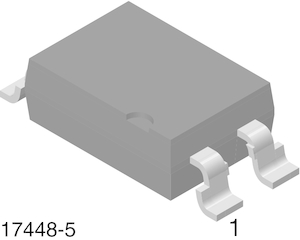

Vishay optocoupler, SMD-4, SFH6156-2T
Unit Price (€ / pc.)
0.2261 € *
Available: 0 pcs.
Leadtime: On Request **
Optocoupler, SFH6156-2T, VISHAY
The SFH6156-2T features a variety of transfer ratios, low coupling capacitance and high isolation voltage. This product has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic SMD package. The coupling device is designed for signal transmission between two electrically separated circuits.
Features
- Excellent CTR linearity depending on forward current
- Fast switching times
- Low CTR degradation
- Low coupling capacitance
Applications
- Switchmode power supply
- Telecom
- Battery powered equipment
Technical specifications
| Rise time | 2 s | |
| Number of channels | 1 | |
| Output current | 50 mA | |
| Enclosure | SMD-4 | |
| Isolation voltage | 5.3 kV | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Fall time | 2 s |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85414900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
