SFH6156-3X001T | Vishay

Vishay optocoupler, SMD-4, SFH6156-3X001T

Order No.: 68S3442
EAN: 4099879001436
MPN:
SFH6156-3X001T
Series: SFH61
Vishay

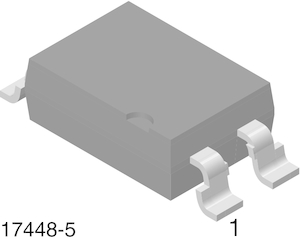

SFH6156-3X001T Vishay Optocoupler
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.3332 €

Optocoupler, SFH6156-3X001T, VISHAY

The SFH6156-3X001T features a variety of transfer ratios, low coupling capacitance and high isolation voltage. This product has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic SMD package. The coupling device is designed for signal transmission between two electrically separated circuits.

Features

  • Excellent CTR linearity depending on forward current
  • Fast switching times
  • Low CTR degradation
  • Low coupling capacitance

Applications

  • Switchmode power supply
  • Telecom
  • Battery powered equipment
Technical specifications
Rise time 2 s
Number of channels 1
Output current 50 mA
Enclosure SMD-4
Isolation voltage 5.3 kV
max. operating temperature 100 °C
min. operating temperature -55 °C
Assembly THT
Fall time 2 s
Logistics
Country of origin MY
Customs tariff number 85414900
Original Packaging Reel with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
