SFH6345 | Vishay

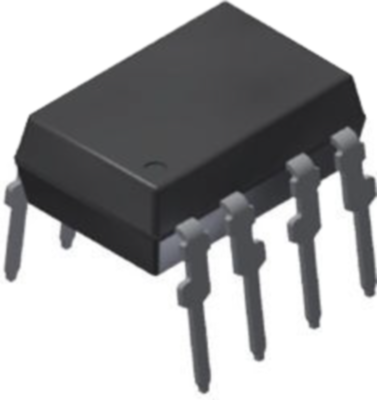

Vishay optocoupler, DIP-8, SFH6345
Unit Price (€ / pc.)
1.7374 € *
Available: 1,894 pcs.
Leadtime: 6 Weeks **
Total Price:
17.37 € *
Price list
Quantity
Price per unit*
10 pcs.
1.7374 €
50 pcs.
1.5351 €
250 pcs.
1.3209 €
1000 pcs.
1.1543 €
2500 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale
Optocoupler, SFH6345, VISHAY
The SFH6345 is an optocoupler with a GaAlAs infrared emitting diode, optically coupled to an integrated photo detector consisting of a photo diode and a high speed transistor in a DIP-8 plastic package. The device is similar to the 6N135 but has an additional Faraday shield on the detector which enhances the input-output dV/dt immunity. Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. This an ideal solution for industrial communication bus isolation, as well as isolated drive circuit applications such as IPM (intelligent power module) drivers.
Features
- High speed optocoupler without base connection
- Integrated detector with photo diode and transistor
- TTL compatible
- Open collector output
- Good CTR linearity relative to forward current
- Field effect stable
- Low coupling capacitance
Applications
- Data communications
- IGBT drivers
- Programmable controllers
- Programmable controllers
Technical specifications
| Rise time | 300 s | |
| Number of channels | 1 | |
| Output current | 8 mA | |
| Data transmission rate | 1000000 mb/s | |
| Enclosure | DIP-8 | |
| Isolation voltage | 5.3 kV | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Fall time | 300 s |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85414900 |
| MSL | MSL 1 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
