S2M-E3/52T | Vishay

Name: SMD rectifier diode, 700 V, 1.5 A, DO-214AA, S2M-E3/52T
Brand: Vishay
SKU: 26S9216
Price: 0.08 EUR
Availability: OutOfStock

SMD rectifier diode, 700 V, 1.5 A, DO-214AA, S2M-E3/52T

Order No.: 26S9216

EAN: 4099879043764

MPN:

S2M-E3/52T

9DRS2M52T

Series: S2

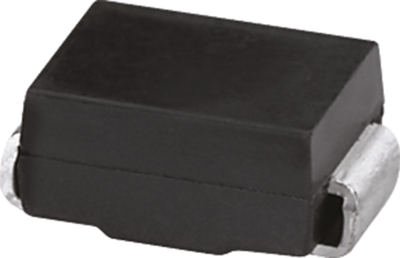

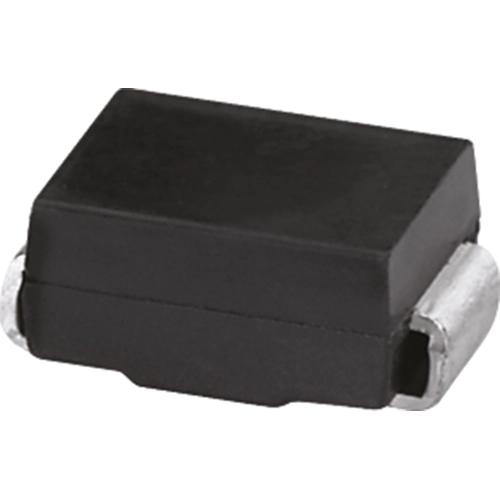

Image may differ

Key Specification:

Anzahl der Dioden 1

Ausführung Passivierte Glas-Diode

Montage SMD

Gehäuse DO-214AA

Unit Price (€ / pc.)

0.0821 € *

Available: 0 pcs.

Leadtime: 10 Weeks **

Total Price:

0.08 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

SMD rectifier diodes, type Vishay S2.

Low leakage current, AEC-Q101 qualified. Rated current 1.5 A; Operating temperatures: –55 to +150 °C. Package: DO214AA (SMB).

Technical attributes (type, voltage (VRRM), voltage (VRMS)): S2M, VRRM 1000 V, VRMS 700 V

Technical specifications

	Anzahl der Dioden	1
	Ausführung	Passivierte Glas-Diode
	Durchlassstrom	1.5 A
	Gehäuse	DO-214AA
	max. Temperatur	150 °C
	min. Temperatur	-55 °C
	Montage	SMD
	Spannung V RRM (Spitzensperrspannung)	1000 V
	Sperrschichttemperatur (max.)	150 °C
	Sperrschichttemperatur (min.)	-55 °C
	Sperrspannung	1000 V
	Stoßspitzensperrspannung V RMS	700 V
