MBR20100CT | Vishay
Schottky rectifier diode, 100 V (RRM), 20 A, TO-220AB, MBR20100CT
Unit Price (€ / pc.)
2.8798 € *
Available: 870 pcs.
Leadtime: On Request **
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8798 €
10 pcs.
2.4038 €
100 pcs.
2.0587 €
250 pcs.
1.8802 €
1000 pcs.
1.7136 €
*incl. VAT plus shipping costs
**Subject to prior sale

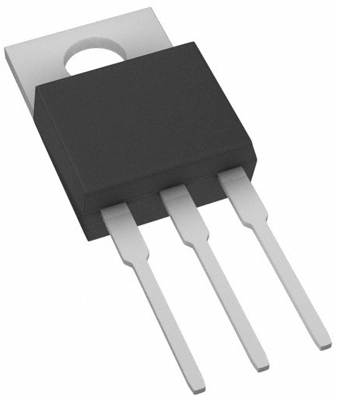

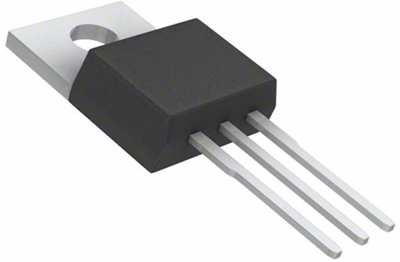

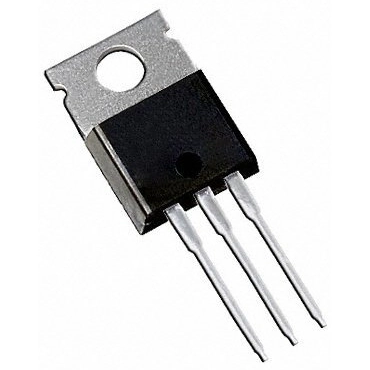

Schottky diode, MBR20100CT, Vishay
Dual high voltage trench MOS barrier Schottky rectifier.
Features
- Trench MOS Schottky technology
- Lower power losses, high efficiency
- Low forward voltage drop
- High forward surge capability
- High frequency operation
Applications
- High frequency rectifier of switching mode power supplies
- Free-wheeling diodes
- DC/DC converters
- Polarity protection application
Technical specifications
| Version | schottky rectifier diode | |
| Forward Current | 20 A | |
| Enclosure | TO-220AB | |
| Capacity | 600 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| Junction temperature (max.) | 150 °C | |
| Junction temperature (min.) | -65 °C |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
| Original Packaging | Bar with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
