7-Segment Display TDSO5150
Unit Price (€ / pc.)
1.5113 € *
Available: 0 pcs.
Leadtime: On Request **

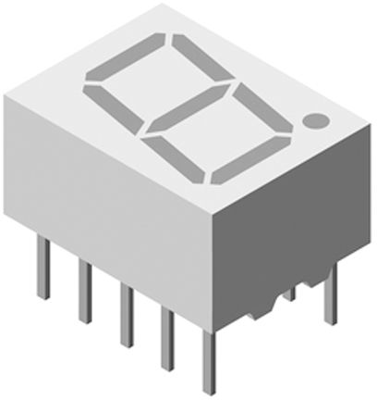

7-Segment display, TDSO5150, VISHAY
The TDSO5150 is a 13 mm character seven segment LED display in a very compact package. The display is designed for a viewing distance up to 7 m.
Features
- Evenly lighted segments
- Grey package surface
- Untinted segments
- Luminous intensity categorized
- Green categorized for color
- Wide viewing angle
- Suitable for DC and high peak current
Applications
- Panel meters
- Test- and measure-equipment
- Point-of-sale terminals
- Control units
Technical specifications
| Connection | anode | |
| Number of positions | 1 | |
| Rated current | 10 mA | |
| Width | 12.25 mm | |
| Colour | orange-red | |
| Height | 6.4 mm | |
| Length | 17.5 mm | |
| Light intensity min. | 0.0007 cd | |
| Light intensity typ. | 0.005 cd | |
| Assembly | THT | |
| Wavelength | 625 nm | |
| Character height | 13 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
| Original Packaging | Bar with 40 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
