MCS04020C4703FE000 | Vishay
Resistor, thin film, SMD 0402 (1005), 470 kΩ, 0.063 W, ±1 %, MCS04020C4703FE000
Unit Price (€ / pc.)
0.0190 € *
Available: 2,840 pcs.
Leadtime: 12 Weeks **
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0190 €
500 pcs.
0.0178 €
1000 pcs.
0.0167 €
5000 pcs.
0.0143 €
10000 pcs.
0.0131 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD thin-film resistor, MCS 0402 TK50 1% 470K, Beyschlag
Resistor, Thin film, SMD 0402, 470 kΩ, 0.063 W, ±1 %
Features
- Approved according to EN 140401-801
- Excellent overall stability: Class 0.5
- Advanced thin film technology
- Compatible with lead (Pb)-free and lead containing soldering processes
- Lead (Pb)-free and RoHS compliant
Technical specifications
| ohmic resistance | 470 kΩ | |
| Design | SMD 0402 (1005) | |

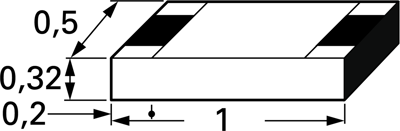

| Width | 0.5 mm | |
| Height | 0.32 mm | |
| Length | 1 mm | |
| Power | 0.063 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thin film | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 10,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
