MMA02040C2400FB300 | Vishay
Resistor, thin film, SMD 0204, mini MELF, 240 Ω, 0.25 W, ±1 %, MMA02040C2400FB300
Order No.: 06E604
EAN: 4099879155184
MPN:
MMA02040C2400FB300
MMA 0204-50 BL 1% 240R
Series: MMA 0204
Unit Price (€ / pc.)
0.0357 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

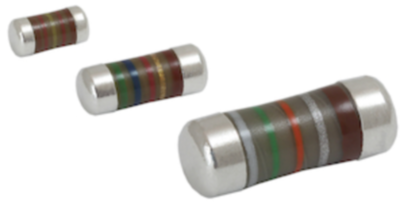

SMD thin-film resistor size 0204, Mini-MELF, 0.25 W, tolerance 1.0 %, type Vishay/Beyschlag MMA 0204 Professional.
Technical specifications
| ohmic resistance | 240 Ω | |
| Design | SMD 0204 | |

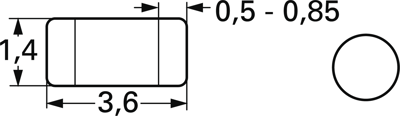

| diameter | 1.4 mm | |
| Enclosure | mini MELF | |
| Length | 3.6 mm | |
| Power | 0.25 W | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thin film | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
