MMA02040C5100FB300 | Vishay
Resistor, thin film, SMD 0204, mini MELF, 510 Ω, 0.25 W, ±1 %, MMA02040C5100FB300
Order No.: 06E636
EAN: 4099879155276
MPN:
MMA02040C5100FB300
MMA 0204-50 BL 1% 510R
Series: MMA 0204
Unit Price (€ / pc.)
0.0774 € *
Available: 3,600 pcs.
Leadtime: 12 Weeks **
Total Price:
7.74 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0774 €
300 pcs.
0.0464 €
1000 pcs.
0.0333 €
3000 pcs.
0.0262 €
10000 pcs.
0.0226 €
*incl. VAT plus shipping costs
**Subject to prior sale

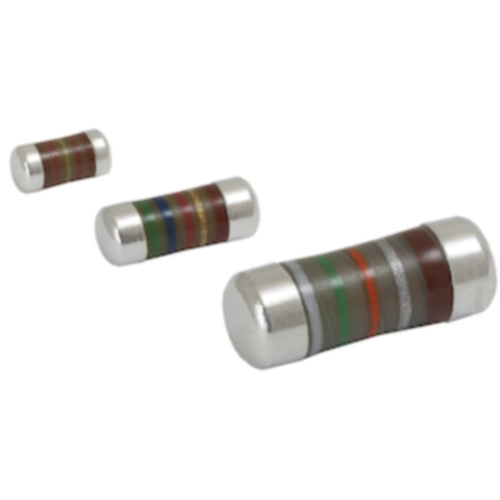

SMD thin-film resistor size 0204, Mini-MELF, 0.25 W, tolerance 1.0 %, type Vishay/Beyschlag MMA 0204 Professional.
Technical specifications
| ohmscher Widerstand | 510 Ω | |
| Bauform | SMD 0204 | |

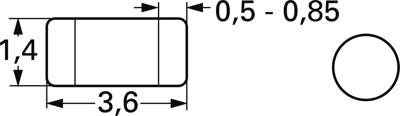

| Durchmesser | 1.4 mm | |
| Gehäuse | Mini-MELF | |
| Länge | 3.6 mm | |
| Leistung | 0.25 W | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±1 % | |
| Technologie | Dünnschicht | |
| Temperaturkoeffizient | ±50 ppm/K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Rolle mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
