MMA02040C5109FB300 | Vishay
Resistor, thin film, SMD 0204, mini MELF, 51 Ω, 0.25 W, ±1 %, MMA02040C5109FB300
Unit Price (€ / pc.)
0.0464 € *
Available: 6,373 pcs.
Leadtime: 12 Weeks **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0464 €
300 pcs.
0.0333 €
1000 pcs.
0.0262 €
3000 pcs.
0.0226 €
10000 pcs.
0.0202 €
*incl. VAT plus shipping costs
**Subject to prior sale

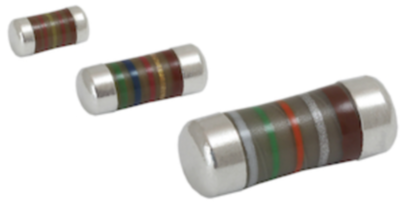

SMD thin-film resistor size 0204, Mini-MELF, 0.25 W, tolerance 1.0 %, type Vishay/Beyschlag MMA 0204 Professional.
Technical specifications
| ohmic resistance | 51 Ω | |
| Design | SMD 0204 | |

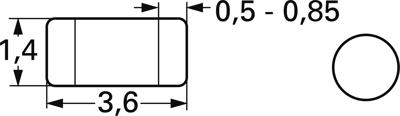

| diameter | 1.4 mm | |
| Enclosure | mini MELF | |
| Length | 3.6 mm | |
| Power | 0.25 W | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thin film | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
