MMU01020C2001FB300 | Vishay

Resistor, thin film, SMD 0102, Micro-MELF, 2 kΩ, 0.2 W, ±1 %, MMU01020C2001FB300

Order No.: 06E228
EAN: 4099879154781
MPN:
MMU01020C2001FB300
MMU 0102-50 1% BL2K0
Series: MMU 0102
Vishay
MMU01020C2001FB300 Vishay SMD Resistors Image 1
MMU01020C2001FB300 Vishay SMD Resistors Image 2
Image may differ
Print
Key Specification:
ohmic resistance 2 kΩ
Tolerance ±1 %
Power 0.2 W
Design SMD 0102
Enclosure Micro-MELF
Show 23 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.0857 € *
Available: 3,345 pcs.
Leadtime: 12 Weeks **
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
50 pcs.
0.0857 €
250 pcs.
0.0643 €
1500 pcs.
0.0500 €
5000 pcs.
0.0417 €
10000 pcs.
0.0369 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD thin-film resistors, size 0102, Micro-MELF, 0.2 W, tolerance 1.0 %, type Vishay/Beyschlag MMU 0102 Professional.
Technical specifications
ohmic resistance 2 kΩ
Design SMD 0102

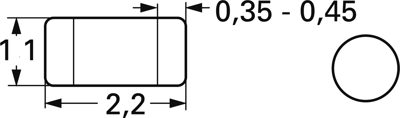

diameter 1.1 mm
Enclosure Micro-MELF
Length 2.2 mm
Power 0.2 W
max. operating temperature 155 °C
min. operating temperature -55 °C
Tolerance ±1 %
Technology thin film
Temperature coefficient ±50 ppm/K
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
