MMU01020C4701FB300 | Vishay
Resistor, thin film, SMD 0102, Micro-MELF, 4.7 kΩ, 0.2 W, ±1 %, MMU01020C4701FB300
Unit Price (€ / pc.)
0.1273 € *
Available: 1,848 pcs.
Next delivery: 3,000 pcs. on 2025-01-07
Leadtime: 12 Weeks **
Total Price:
0.13 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1273 €
10 pcs.
0.1119 €
100 pcs.
0.0797 €
300 pcs.
0.0559 €
1000 pcs.
0.0464 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD thin-film resistors, size 0102, Micro-MELF, 0.2 W, tolerance 1.0 %, type Vishay/Beyschlag MMU 0102 Professional.
Technical specifications
| ohmic resistance | 4.7 kΩ | |
| Design | SMD 0102 | |

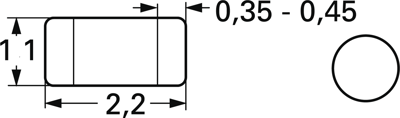

| diameter | 1.1 mm | |
| Enclosure | Micro-MELF | |
| Length | 2.2 mm | |
| Power | 0.2 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thin film | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
