WSC2515R5000FEA | Vishay
Resistor, wirewound, SMD 2515, 500 mΩ, 1 W, ±1 %, WSC2515R5000FEA
Unit Price (€ / pc.)
1.19 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
SMD wire-wound resistors, 0.5 to 3.0 W, tolerance 1.0 %, type Vishay/Dale WSC.
Sealed, ultra-stable at different environment conditions
1.0 W, size 2515, type WSC2515.
Technical specifications
| ohmic resistance | 500 mΩ | |

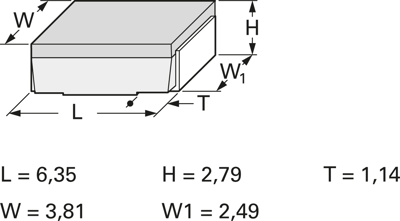

| Design | SMD 2515 | |
| Height | 2.79 mm | |
| Length | 6.35 mm | |
| Power | 1 W | |
| max. operating temperature | 275 °C | |
| min. operating temperature | -65 °C | |
| Tolerance | ±1 % | |
| Technology | Drahtgewickelt | |
| Temperature coefficient | ±90 ppm/K |
Download
Logistics
| Country of origin | IL |
| Customs tariff number | 85331000 |
| Original Packaging | Rolle mit 2.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
